200 Series Aseptic Centrifugal Pumps

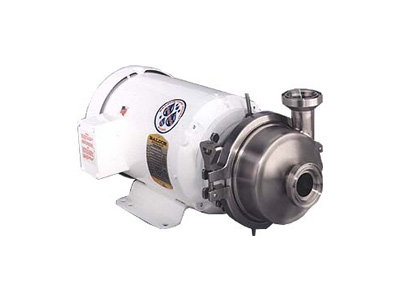

Aseptic 200 Series Centrifugal Pumps
Aseptic version of the Waukesha Cherry-Burrell 200 Series Heavy-Duty Sanitary Centrifugal Pumps. Sterile steam at every potential entry point blocks contaminated air or liquid.
For aseptic flow applications, centrifugal models are available that retain the benefits of the Heavy-Duty Centrifugal but also include special design features that protect the product zone against contamination. Modifications assure that every potential entry point for contaminated air or liquid is bathed in sterile steam.
The JM motor, equipped with a stainless steel shaft, is standard. Aseptic models may be specified in either pedestal or close-coupled configuration.
- Full steam trace around pump cover, seal chamber and ferrules
- An exclusive steam trace on the clamp itself
- Compression fittings on each side of the head that feed steam for the ring around the back plate
- Direct steam intrusion in the seal area
- Siliconized graphite seal material
- Holes in back plate between vanes equalize pressure and permit thorough cleaning
- Pedestal or close-coupled configurations
