Pumps

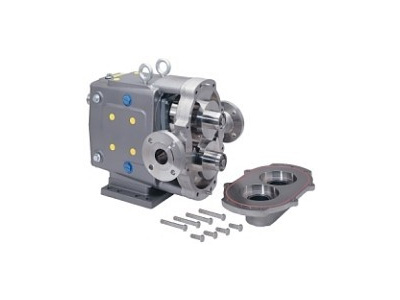

5000 Series Industrial PD Pumps
5000 Series Industrial Pump
High-efficiency rotary PD pump configured for a wide variety of industrial applications. Ideal for pumping low viscosity and non-lubricating fluids, for metering fluids, for gentle pumping of shear-sensitive fluids or for pumping high-viscosity fluids.
- Non-galling Waukesha "88" alloy rotors standard
- A variety of mechanical seals and packing available
- Steel-it Paint standard
- Maximum pressure: 200 psi (13.8 bar)
- Temperature range: -40° F (-40° C) to 300° F (149° C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
MAXIMUM PRESSURE |
|---|---|---|---|
| 5040 | 0.060 Gal. (0.227 Liter) | 36 GPM (8.2 m³/hr.) | 200 PSI (13.8 bar) |
| 5050 | 0.153 Gal. (0.579 Liter) | 90 GPM (20.4 m³/hr.) | 200 PSI (13.8 bar) |
| 5060 | 0.254 Gal. (0.961 Liter) | 150 GPM (34.1 m³/hr.) | 200 PSI (13.8 bar) |
| 5070 | 0.440 Gal. (1.666 Liter) | 260 GPM (59.1 m³/hr.) | 200 PSI (13.8 bar) |
| 5080 | 0.754 Gal. (2.854 Liter) | 450 GPM (102.2 m³/hr.) | 200 PSI (13.8 bar) |
