Heavy Duty

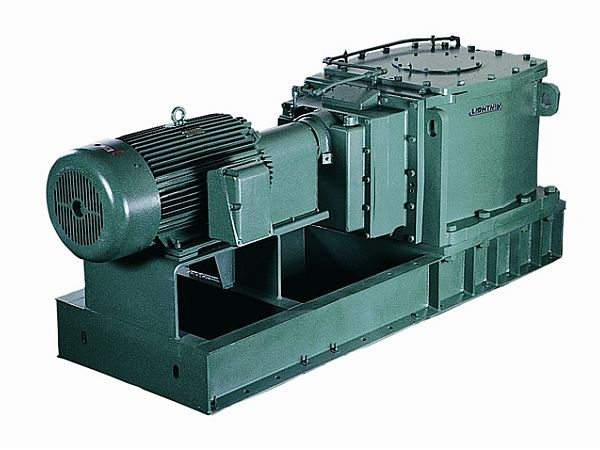

700 / 800 Series- Large Top Entering Mixer
700 and 800 Series Mixers For Both Open and Closed tanks
Lightnin 700/800 series mixers are designed to provide reliable service in the largest, most demanding applications, from pharmaceutical fermentation and large-scale chemical processing to minerals processing and heavy sludge waste treatment.
- Exclusive hollow quill drive protects the gear train from severe shaft flexure.
- Bearings are sized far beyond AGMA requirements for minimum maintenance and long service life
- Heavy-duty motor mount is standard
- Horsepowers from 25 to 3000 + and speeds from 230 to 11.4 rpm
- Choice of replaceable cartridge seals
- Largest ouput shaft per allowable torque for greater bending design & longer shafts.
- Case carburized & ground helical-bevel combination gearing for unmatched efficiency, quiet running & long life
New design for 784/884 Mixers
- Positive direct drive
- Rugged housing designed for easy assembly and maintenance
- Tapered roller bearings handle overhung shaft loads
- Triple reduction gearing has robust AGMA service factor
- Available on larger units to 1250 hp
