Centrifugal Pumps

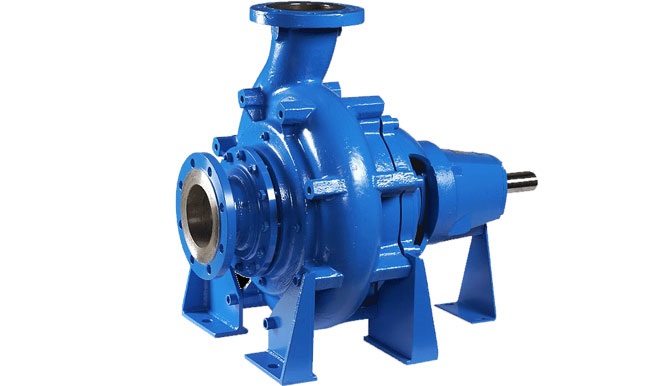

CombiDirt Centrifugal Pump
This is a robust single stage centrifugal pump for pumping fluids containing solids. CombiDirt is also capable of handling gaseous liquids and media requiring self-priming conditions. This pump uses vortex technology with open impellers to prevent clogging. The flanges is according to ISO 7005 PN16. ATEX and Self priming option is available. The impeller has back vanes to sweep solids away from the shaft sealing area. Maintenance is easy with a back pull out. The seal is single and unbalanced mechanical seal to EN 12756 (DIN 24960). Other seal options are quenched shaft seal or gland packing. This is a dry shaft design where the pumped liquid is not in contact with the shaft. The shaft is carried with a double row contact thrust bearing and cylindrical roller bearing.
Robust centrifugal pump for liquids containing solids.
- Can handle solids
- Vortex technology
- Prevent clogging
- Standardized and modular design
- Flanges according to ISO 7005 PN 16
- Available in horizontal and vertical execution
- Self-priming option available
- Atex certification
- Handle liquids with varying amounts of gas
- Impeller with back vanes providing solids kept away from shaft sealing area
- Easy maintenance through the Back-Pull-Out principle
- Single unbalanced mechanical seals to EN 12756 (DIN 24960)
- Quenched shaft sealing
- Gland packing
- Dry-shaft design, pumped liquid not in contact with the shaft
- Robust shaft design
- Extended life time
- Double row angular contact thrust bearing and cylindrical roller bearing
- Grease or oil bath lubricated bearings
- In vertical execution many mounting options (floor, bulkhead)
- In vertical execution eight positions possible between suction and delivery connections
Suitable For:
Transporting liquids containing solids of all sorts. CombiDirt is also capable of handling gaseous liquids and media requiring self-priming conditions.
