Divert Double Seat Mix Proof Valves - W73 Series
Mix Proof valves provide safe separation of dissimilar products within the same valve body. For general purpose Mix Proof applications, SPX offers the W73 Series for divert applications.
Materials
- Product Wetted: Stainless Steel, ASTM 316L (UNS-S31603); (DIN-1.4404)
- Non-Product: Stainless Steel, ASTM 304 (UNS-S30400); (DIN-1.4301)

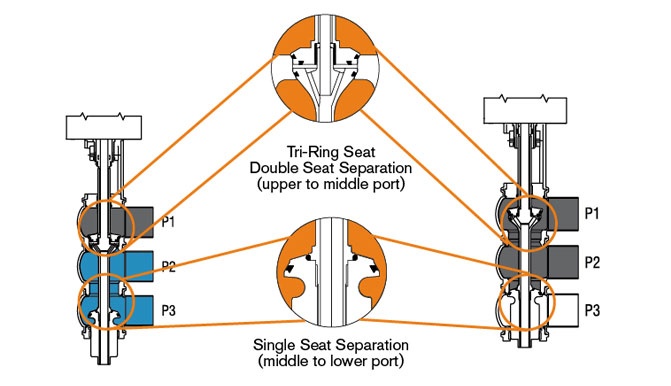

- Seat: Tri-Ring Compression Seal on Upper and Lower Stems
- Elastomers: EPDM or FKM (Fluoroelastomer)
- Finish: ≤ 32 Ra (≤0.8 µm) Other finishes available upon request.
Operating Pressure Ratings
- 1½" - 3" (38mm - 76mm) Sizes - 150 psig (10 bar)
- 4" (102mm) Size - 100 psig (7 bar)
- 4" (102mm) Sch. 5 Size - 150 psig (10 bar)
- 6" (152mm) Size - Consult Factory
- 6" (152mm) Sch. 5 Size - 150 psig (10 bar)
