SWECO Aftermarket Parts
Electrical Control

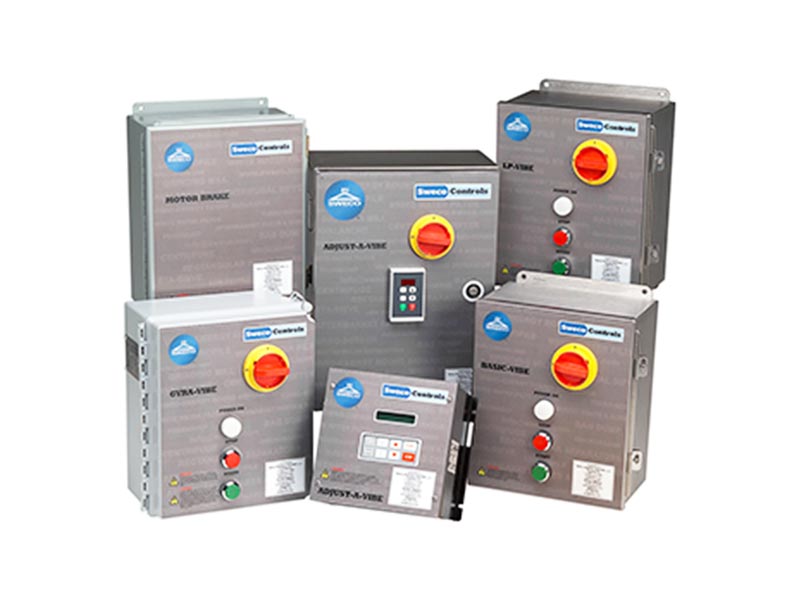

SWECO offers a variety of electrical controls with advanced safety features that make our products safer for our customers. Most SWECO controls have terminal blocks that provide safe and fast electrical connections. Additionally, most of our controls have flush start buttons, protruding stop buttons, power lights, and lockable disconnects. All SWECO controls provide environmental protection for electrical components and are constructed of NEMA 4X fiberglass, NEMA 4X stainless or painted steel, NEMA 4 painted steel or NEMA 12 painted steel.
In addition to the standard electrical controls we manufacture, SWECO can custom design electrical controls to meet your specific power requirements if within acceptable electrical standards.
Basic Vibe
The Basic Vibe is a start/stop control with fused overload protection for units with single motors from 1/4 HP to 5 HP. It is available in NEMA 4X fiberglass and NEMA 4X stainless steel.
Specifications:
• Dimensions: 12"H X 10"W X 6"D
• Includes starter
• Single overload relay
• Through door fused disconnect switch with main fuses
• Control transformer with fused primary and secondary
• Terminals for user interconnection
• Door mounted items include: start/stop buttons, power on light
• Available in:
• 1/4 HP, 1/3 HP, 1/2 HP, 2 1/2 HP and 5 HP
• 230 Volt / 3 Phase / 60 Hz
• 380 Volt / 3 Phase / 50 Hz
• 415 Volt / 3 Phase / 50 Hz
• 460 Volt / 3 Phase / 60 Hz
• 575 Volt / 3 Phase / 60 HzBasic Vibe Single Phase
The Basic Vibe Single Phase is a start/stop control with fused overload protection for Baldor 110 volt single phase motors only. It is constructed of NEMA 4X stainless steel and is supplied with 20' of cable and male plug for incoming power. It can be mounted to a base or remotely.
Specifications:
• Dimensions: 6"H X 6"W X 4"D
• Includes motor capacitor
• Ice cube relay
• Single pole overload
• Door mounted start and stop push buttons Adjust-A-Vibe
Adjust-A-Vibe is a start/stop inverter control with variable speed and variable output power for units with single motors from 1/4 HP to 5 HP. It is available in NEMA 4X painted steel and NEMA 4X stainless steel.
Specifications:
• Dimensions: 16"H X 12"W X 6"D
• Variable frequency display
• Fused for protection
• Through door fused disconnect switch
• Terminals for user interconnection
• Door mounted keypad for start/stop, speed adjustment, speed indication, power on indication and trouble shooting Adjust-A-Vibe Single Phase Adjust-A-Vibe Single Phase is a 110 Volt input power start/stop control with variable speed and variable output power for units with single motors. This control can only be used with fractional HP motors with a maximum of 240 volts. 20' of cable and male plug are supplied for incoming power. It is available in NEMA 4X painted steel and NEMA 4X stainless steel.
Specifications:
• Dimensions: 8"H X 8"W X 5"D
• Variable frequency drive
• 110 Volt input
• 3 Phase variable output
• Terminals for user interconnection
• Face mounted keypad for start/stop, speed adjustment, speed indication and trouble shootingLP-Vibe
The LP-Vibe is a start/stop control with fused overload protection for Low Profile units with two motors. It is available in NEMA 4X fiberglass and NEMA 4X stainless steel.
Specifications:
• Dimensions: 12"H X 10"W X 6"D
• Includes starter
• Dual overload relays
• Through door fused disconnect switch with main fuses
• Control transformer with fused primary and secondary
• Terminals for user interconnection
• Door mounted start/stop buttons and power on light
• Available for all Low Profile motors GyraMax Controls
The GyraMax Controls is a fiberglass start/stop control with fused overload protection for all GyraMax units. It includes a 3 minute timer to prevent accidental restart of unit during shutdown.
Specifications:
• Dimensions: 12"H X 10"W X 6"D
• NEMA 4X fiberglass enclosure
• Includes starter
• Single overload relay
• Through door fused disconnect switch with main fuses
• Control transformer with fused primary and secondary
• Terminals for user interconnection
• Door mounted items include: start/stop buttons, power on light
• Available in:
• 230 Volt / 3 Phase / 60 Hz
• 380 Volt / 3 Phase / 50 Hz
• 415 Volt / 3 Phase / 50 Hz
• 460 Volt / 3 Phase / 60 Hz
• 575 Volt / 3 Phase / 60 HzMotor Brakes
SWECO offers a Single Phase Fractional HP Motor Brake and a 3 Phase Motor Brake. The single phase motor brake is a motor brake for 110 Volt single phase fractional horse power motors. SWECO's 3 phase motor brake is a motor brake for 1/4 HP to 5 HP motors. The motor brakes inject pulsating DC current into motors in order to quickly slow the motor down allowing for faster and smoother shut down of units.
Specifications:
• Dimensions: 12"H X 10"W X 5"D
• NEMA 12 painted steel enclosure
