INDAG

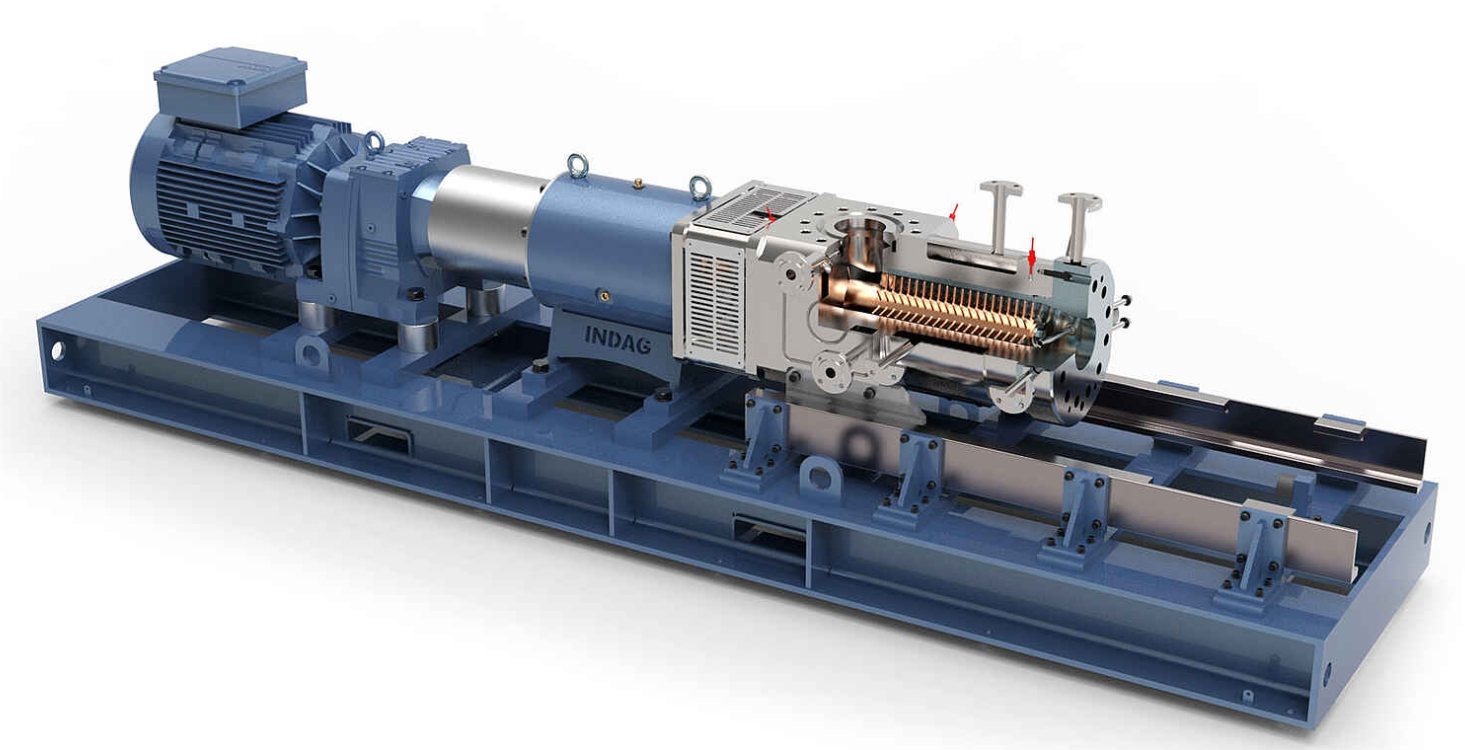

Maschinenbau GmbH DLM/S HP
Commercial advantages of DLM/S HP:
- Easy way to improve product quality and to upgrade product characteristics.
- Quick return on investment.
- Realize higher prices and higher margins for upgrades and unique products.
- Nearly dead space free.
- No wear of rotor and stator (contact-free)
- Drive power is efficiently transformed into mixing energy
- Only designed for mixing
- Upon request INDAG also delivers additive metering pumps and additional equipment.
Technical advantages of DLM/S HP:
- Highest flexibility
- Easy and fast product changes
- Better and more homogenious mixture
- Low pressure loss
Positioning
Horizontal
Pressure levels
25 bar, 40 bar, 100 bar, 160 bar, higher on request
Materials
Carbon Steel, AISI 304, AISI 316L, Hastelloy, acid resistant tantal coating
Seals
Visco seal with stuffing box package
Connections
DIN order ANSI flange (25 bar); INDAG high pressure flange (40-160 bar)
Rotational speed
180 rpm to 550 rpm
Capacities
10kg/h to 10,000 kg/h (higher on inquiry)
Temperatures
0°C to 330°C
Viskosities
1mPas to 70,000,000 mPas
- Caprolactam + stabilizer, TiO2 solution
- FETL polymer melt polyester
- PET + phosphoric acid
- Polybutadience phtalate + additives
- Polybutene 1-polymer + stabilizer (hexane)
- Polyester resin + polyester resin
- Polyester polymer
- Polyester melt + water
- Polyol + polyol, binder
- Polyol + catalyser
- Polyurethane + isocyanate
- PVA + water
- PVC powder + dimethyl formamide
- PVC powder + DMF
- PAGG + Lubricant or colour
- TPE or PBT + additives
- Silicone + silicone
- Silicone basic mass + colour
- Silicone basic mass + additives
- Silicone oil + water
- Silicone oil + desactivator
- Silicone paste + silicone oil
- Silicone polymer + desactivator
- Silicone polymer (inline heating)
- Hot melt glue adhensive
