Scraped Surface Heat Exchangers - 4 X 120 Series
The patented Votator® 4 x 120 is designed to deliver efficient performance for lower initial investment, as well as lower maintenance cost.

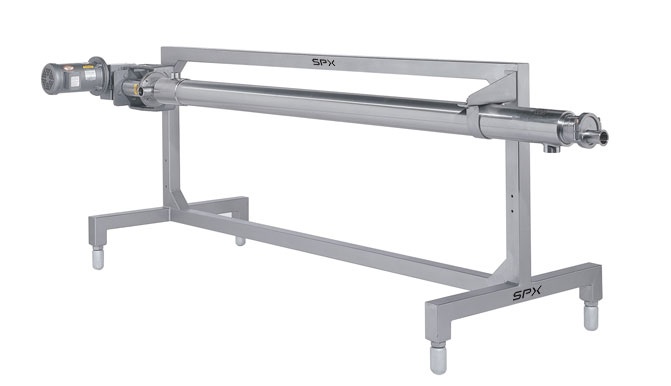

The Votator 4 x 120 is a unique concentric scraped surface heat exchanger designed for heating and cooling moderately viscous products.
- 3A Approved/PED-SEP compliant
- All 316 stainless steel construction with high efficiency stainless steel heat transfer tube and optional AL6XN construction
- Available with 9 ft (0.84 m²) heat transfer area
- Horizontal units can be mounted side by side with up to 8 cylinders per frame or furnished loose for vertical mount.
- All units are suitable for steam or liquid media.
- Mechanical seal with flush connection on drive end with sleeve bearing on non-driven end
- 3 and 5 horsepower (2.2 kW - 5.5 kW) gear drives with shaft speeds of 90 and 175 rpm
- Plastic scraper blades
- Product side pressure of 200 psig (14 bar) @ 365°F (185°C); jacket pressure of 150 psig (10.5 bar) @ 365°F (185°C)
- 2-3/8" inch (60 mm) shaft diameter for particulates up to ¾" (19 mm)
- 2 inch S-Line product connections, 1½" (38mm) FPT media connections
- Self-aligning mutator shaft. No motor coupling, belts or sheaves required
