STELZER

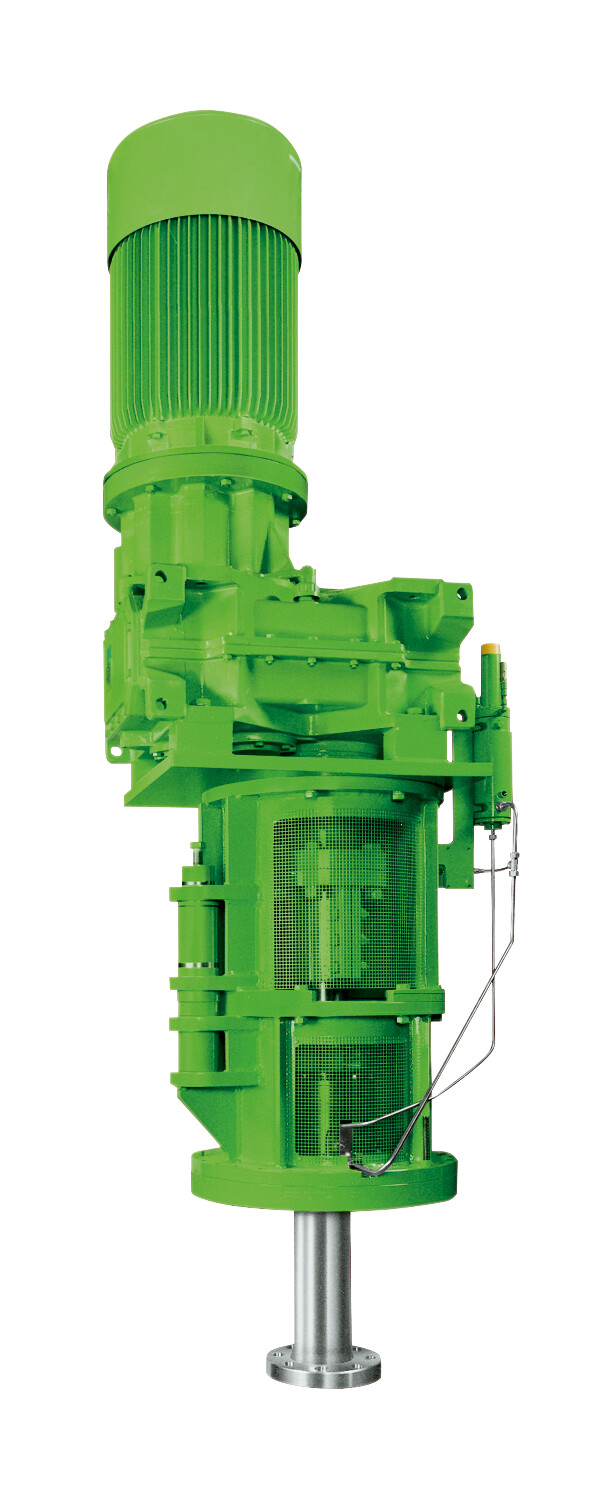

SDR Top / Bottom Entry Mixer
SDR standard DIN agitators are highly dependable standard components of reliable and safe mixing systems with an excellent performance.
The product line is designed for full compliance with all applicable DIN standards and features an advanced modular configuration to achieve optimized cost efficiency, outstanding handling behavior for all applications and easy maintenance.
- Fast seal replacement by swiveling upper lantern part is one out the outstanding features.
- Fixed or variable speed drive systems as process needs dictate.
- Modular system for standard applications and specials like high torque or high pressure units.
- Specials with short lantern design to fit in constricted areas.
- Robust bearing housing with integrated coupling and seal lanterns.
- Stuffing box or mechanical seal with DIN dimensions.
- Options for top entry and bottom entry.
Motor Power - 5,5 - 300 Kw
Drive - Fixed-speed or variable-speed drive as required for optimized process control, flat spur gearing, geared motor, hollow-shaft gearing, special drives
Lantern - To DIN standard 28 162
Coupling - Rigid coupling to drive standard shaft, split for fast seal replacement (by lift/swivel device) DIN standard 28 155.
Bearing - Roller bearing with adapter sleeve mounting to DIN standard 28 162 Optional bearing integration in mechanical sealing
Shaft end - To DIN standard 28 154 C. Modified shaft required for non-standard designs
Shaft seal - Dimensions to DIN standard 28 138
Mounting flange - To DIN standard 28 141 ANSI dimensions optional
