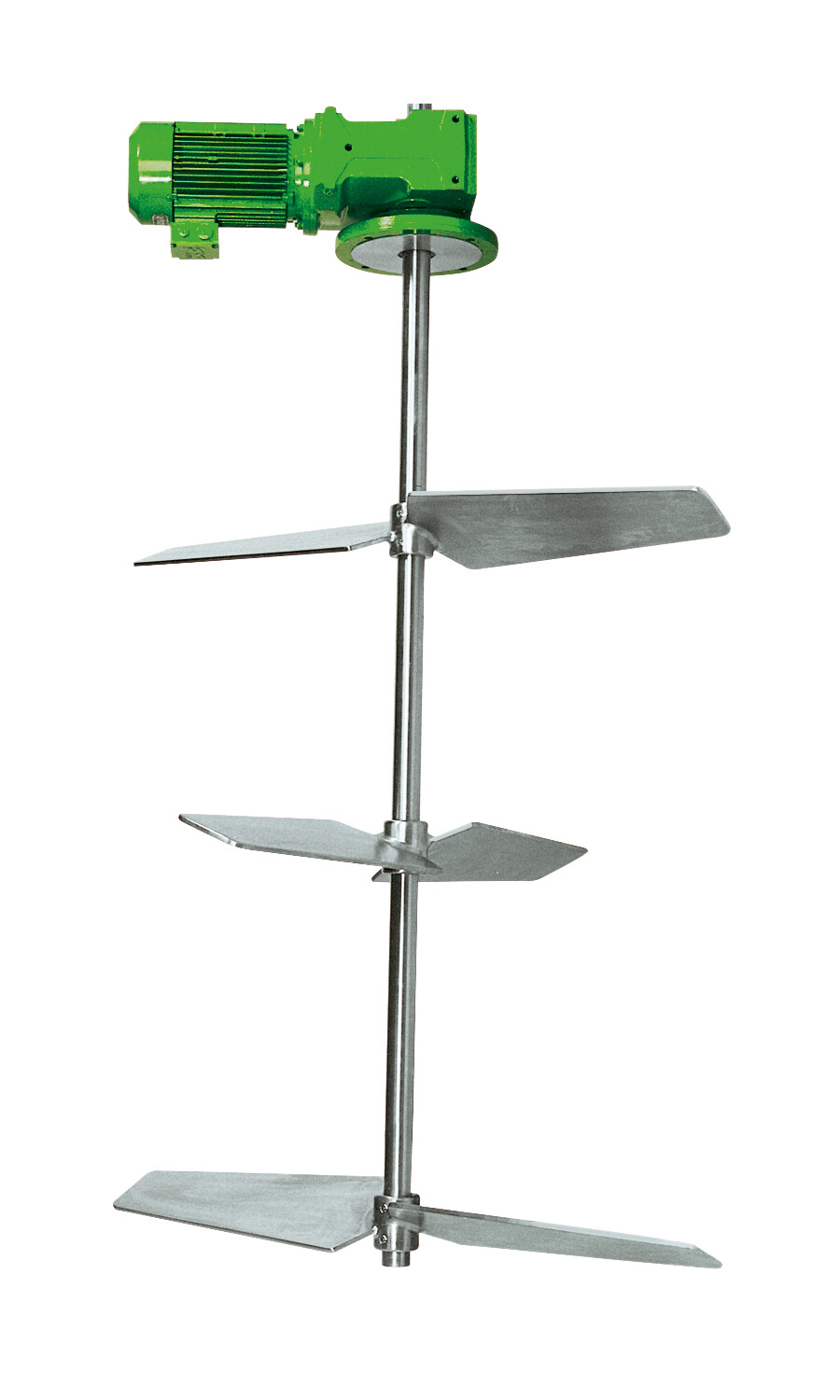

SHS/SHK Compact Top / Bottom Entry Mixer
SHS and SHK agitators satisfy mixing and stirring needs dependably and reliably at speeds below the SM and SG mixer series. Impellers, speeds and power outputs are specified for each application. Ground surfaces make the agitators fit for cleaning in place. The impeller shaft is fitted to the sturdy hollow gearing output shaft by means of a plug-in joint. Careful bearing design accommodating hydraulic impeller radial forces ensures vibration-free shaft operation with or without extra shaft support bearing.
- Reliable performance even at medium to high torque.
- Perfect concentricity and quiet operation at all speeds.
- Sealing technology range from radial shaft sealing with oil drip pan up to high tech hygienic double – acting mechanical sealing.
- The standard unit offers a wide range of applications, and cost-effective system modifications are achievable through the utilization of a diverse array of alternate components.
Motor Power - 0.37 - 110 kW
