Valves
Tank Outlet Double Seat Mix Proof Valves - W72RS Series

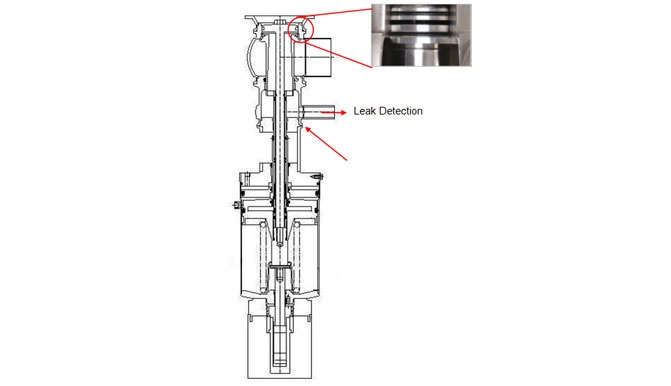

The W72RS Series Mix proof Tank Outlet Valve features a vessel side radial seal for minimum spill operation when opening or closing.
Materials
- Product Wetted: Stainless Steel, ASTM 316L (UNS-S31603)
- Non-Product: Stainless Steel, ASTM 304 (UNS-S30400)
- Elastomers: EPDM or FKM (Fluoroelastomer)
- Finish: ≤ 32 Ra (≤0.8 μm) Other finishes available upon request.
Sizes
- 2.5" (64mm), 3" (76mm), 4" (102mm), and 6” (152mm) OD tube sizes
- Supplied complete with weld-in flange for vessel connection
