Pumps
Universal 1 and 2 Series- Tru-Fit Models
-
- No shaft alignment necessary
- No coupling guard required
- Available for models 006 through 320 UI, UII, UL
- Special base design enhances cleanability
- Reduces overall length of complete unit by an average of 20-25%
- Average of 10-20 gear ratios available per horsepower
- NEMA or IEC frames available, right angle reducer also available for additional space savings
- 1/2 through 60 horsepower drive options available
- Horizontal or vertical porting available
- Separate oil sump for gear reducer and timing gears
- Easy to maintain
-
Base Options

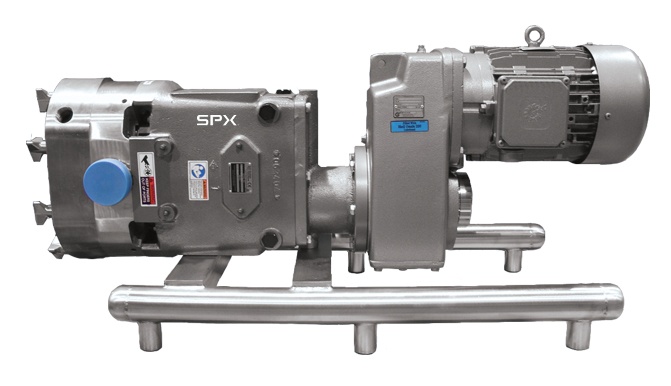

Close coupled Tru-Fit™ pump mounted on tubular stainless steel base.
Options:
- 304 SS unpolished plate base.
- 304 SS polished plate base.
- NEMA or IEC frames available. Right angle reducer also available for additional space savings.
- 1/2 through 60 horsepower drive options available.
- Horizontal or vertical porting.
UNIVERSAL 1 SERIES TRU-FIT MODELS:
|
MODEL |
|
A |
AO |
H |
M |
PORT SIZE |
N |
O |
|---|---|---|---|---|---|---|---|---|
|
006-U1 |
IN |
12 |
13.25 |
18 |
27.60 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
701 |
--- |
395 |
232 |
|
|
015-U1 |
IN |
12 |
13.25 |
18 |
27.60 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
701 |
--- |
395 |
232 |
|
|
018-U1 |
IN |
12 |
13.25 |
18 |
28.02 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
712 |
--- |
395 |
232 |
|
|
030-U1 |
IN |
14 |
15.11 |
20 |
33.67 |
1½" |
18.65 |
10.02 |
|
mm |
356 |
384 |
508 |
855 |
--- |
474 |
255 |
|
|
040-U1 |
IN |
14 |
15.11 |
20 |
34.04 |
2" |
18.65 |
10.02 |
|
mm |
356 |
384 |
508 |
865 |
--- |
474 |
255 |
|
|
060-U1 |
IN |
18 |
20.00 |
28 |
43.77 |
2½" |
22.02 |
12.00 |
|
mm |
457 |
508 |
711 |
1112 |
--- |
559 |
305 |
|
|
130-U1 |
IN |
18 |
20.00 |
28 |
44.71 |
3" |
22.02 |
12.00 |
|
mm |
457 |
508 |
711 |
1136 |
--- |
559 |
305 |
|
|
220-U1 |
IN |
20 |
23.25 |
36 |
52.25 |
4" |
27.68 |
14.50 |
|
mm |
508 |
591 |
914 |
1327 |
--- |
703 |
368 |
UNIVERSAL 2 SERIES TRU-FIT MODELS:
|
MODEL |
|
A |
AO |
H |
M |
PORT SIZE |
N |
O |
|---|---|---|---|---|---|---|---|---|
|
006-U2 |
IN |
12 |
13.25 |
18 |
27.31 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
694 |
--- |
395 |
232 |
|
|
015-U2 |
IN |
12 |
13.25 |
18 |
27.31 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
694 |
--- |
395 |
232 |
|
|
018-U2 |
IN |
12 |
13.25 |
18 |
27.31 |
1½" |
15.56 |
9.15 |
|
mm |
305 |
37 |
457 |
712 |
--- |
395 |
232 |
|
|
030-U2 |
IN |
14 |
15.11 |
20 |
33.57 |
1½" |
18.65 |
10.02 |
|
mm |
356 |
384 |
508 |
853 |
--- |
474 |
255 |
|
|
040-U2 |
IN |
14 |
15.11 |
20 |
33.94 |
2" |
18.65 |
10.02 |
|
mm |
356 |
384 |
508 |
862 |
--- |
474 |
255 |
|
|
060-U2 |
IN |
18 |
20.00 |
28 |
43.72 |
2" |
22.02 |
12.00 |
|
mm |
457 |
508 |
711 |
1112 |
--- |
559 |
305 |
|
|
130-U2 |
IN |
18 |
20.00 |
28 |
45.01 |
3" |
22.02 |
12.00 |
|
mm |
457 |
508 |
711 |
1143 |
--- |
559 |
305 |
|
|
180-U2 |
IN |
20 |
23.25 |
36 |
50.02 |
3" |
25.91 |
14.50 |
|
mm |
508 |
591 |
914 |
1270 |
--- |
658 |
368 |
|
|
220-U2 |
IN |
20 |
23.25 |
36 |
50.76 |
4" |
25.91 |
14.50 |
|
mm |
508 |
591 |
914 |
1289 |
--- |
658 |
368 |
