Universal 1 Series - 420 / 520 High-Capacity Pumps

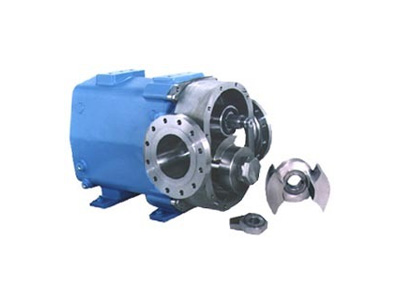

Universal I Series 420/520 High-Capacity PD Pumps
Specifically designed to overcome the challenges of reliable and accurate pumping at high-volume capacities. Every revolution of the 420 pumps more than 1½ gallons; the 520, more than 2 gallons. Ideally suited for tomato, vegetable and pet food industries and for chemical/industrial applications.
- Rotor/shaft connection sealed from the product zone
- 316L stainless steel pump body
- Non-galling Waukesha "88" alloy rotors; 316L stainless steel rotors optional
- Bi-directional flow
- Mechanical seals standard; O-ring seals or variety of standard commercial seals optional
- Seal replacement from the front without removing pump body
- Maximum pressure: 150-200 psi (10.3-13.8 bar)
- Temperature range: -40°F (-40°C) to 300°F (149°C)
| MODEL | DISPLACEMENT PER REVOLUTION |
NOMINAL CAPACITY TO |
PRESSURE PSI |
|---|---|---|---|
| 420-UHC | 1.62 Gal. (6.129 Liter) | 640 GPM (145.4 m³/hr.) | 200 PSI (13.8 bar) |
| 423-UHC | 1.62 Gal. (6.129 Liter) | 640 GPM (145.4 m³/hr.) | 200 PSI (13.8 bar) |
| 520-UHC | 2.38 Gal. (8.990 Liter) | 830 GPM (188.5 m³/hr.) | 150 PSI (10.3 bar) |
| 523-UHC | 2.38 Gal. (8.990 Liter) | 830 GPM (188.5 m³/hr.) | 150 PSI (10.3 bar) |
