Universal 2 Series - Bio-Pharmaceutical Pumps

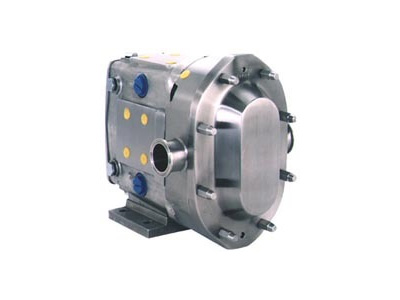

Universal II Series Bio-Pharmaceutical PD Pumps
With advanced features of the Universal II PD pump, the Universal II Bio-Pharmaceutical is designed for the special requirements of pharmaceutical and biotech processes.
- 316L stainless steel rotors standard; non-galling Waukesha "88" alloy rotors optional
- 316L stainless steel product contact surfaces standard; 316L stainless steel or electropolish of all product contact surfaces optional
- Stainless steel bearing frame
- Additional option: seal flush
- Maximum pressure: 200-300 psi (13.8-20.7 bar), depending on model
- Maximum temperature: -40°F (-40°C) to 300°F (149°C)
|
MODEL |
DISPLACEMENT |
NOMINAL |
INLET/ |
PRESSURE |
MAX |
TEMP |
|---|---|---|---|---|---|---|
| 006-UB | .008 GAL. (.03 Liter) | 5.2 GPM (1.5 m³/hr.) | 1" | 300 | 900 | -40° F (-40° C) to 300° F (149° C) |
| 015-UB | .014 GAL. (.05 Liter) | 11.6 GPM (1.8 m³/hr.) | 1" | 250 | 800 | |
| 018-UB | .029 GAL. (.11 Liter) | 24 GPM (3.9 m³/hr.) | 1" | 200 | 700 | |
| 030-UB | .06 GAL. (.23 Liter) | 60 GPM (8.2 m³/hr.) | 1" | 250 | 600 | |
| 060-UB | .15 GAL. (.57 Liter) | 100 GPM (20.4 m³/hr.) | 2" | 250 | 600 | |
| 130-UB | .25 GAL. (.95 Liter) | 200 GPM (34.1 m³/hr.) | 3" | 200 | 600 | |
| 220-UB | .52 GAL. (1.93 Liter) | 300 GPM (68.1 m³/hr.) | 4" | 200 | 600 |
