Cerex Series

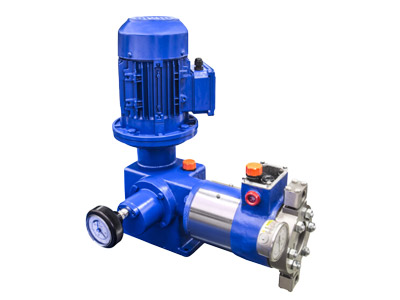

Cerex-K Metering Pumps
Quick and Affordable
CEREX-K metering pump is constructed from standard, proven components held in stock, which minimizing build time without compromising on quality. Its double diaphragm design, combined with built-in failure detection, delivers superior leak prevention performance compared to single diaphragm pumps with a similar price point.
Applications
- Industrial water and waste water treatment
- Boiler feed water treatment
- Chemicals dosing
- Oil & Gas additives dosing
- API 675 compliance
- Hydraulically actuated plastic double PTFE diaphragm
- Diaphragm condition monitoring with pressure gauge
- Double ball check valves
- Connections: NPT/tube fitting (metallic) or union end (plastic)
- Liquid-wetted material available as 316L type or plastic
- Manual linear stroke adjustment from 0 to 100%
- Motor suiting safe area
- Standard paint system
| Flow rate | : 12 - 1200 l/hr |
| Pressure | : Max 103 bar (1500 psi) |
| Fluid visc. | : Max 1000 cP |
| Fluid temp. | : -10 to +93 °C for metallic housing |
| : -10 to +50 °C for plastic housing | |
| Motor | : 0.75 to 1.5 kW depending on duty |
| Frame sizes | : 80 and 90 Voltage per local requirements |
