Centrifugal Pumps

CombiNorm - The Most Versatile Pump

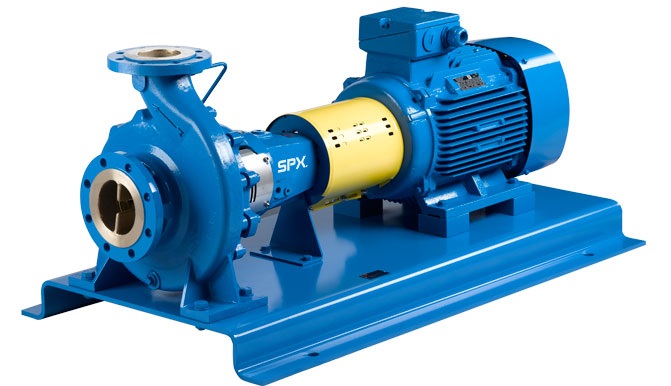

This is a standard centrifugal pump that is coupled with a motor. This pump is suitable for clean and slightly contaminated liquids.flanges are according to ISO 7005 PN16. The impeller used is a closed impeller with back vanes providing axial balancing of impeller loads. Easy maintenance can be carried out with a easy back pull out method. It has outstanding hydraulic performance. Seals can be standard single seal or with balanced double mechanical seals. Single or double cartridge seals with seal support system is also available.

Horizontal centrifugal pump to EN 733 (DIN 24255)

  • Standardized and modular design
  • Flanges according to ISO 7005 PN 16
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Easy maintenance through the Back-Pull-Out principle
  • Single unbalanced / balanced seals to EN 12756 (DIN 24960)
  • Single and double cartridge seals with seal support system
  • Quenched shaft sealing
  • Gland packing
  • Atex certification
  • Dry-shaft design, pumped liquid not in contact with the shaft
  • Robust shaft design
  • Extended life time
  • 2-Deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
  • Grease or oil bath lubricated bearings

Suitable for :
Low viscosity, clean or slightly contamianted liquids.
