Self-Priming Pumps

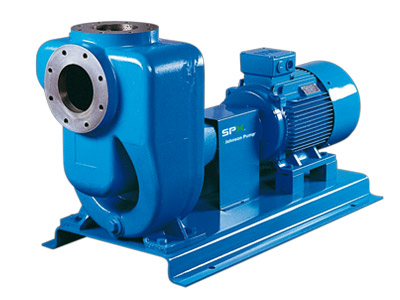

FreFlow - Sensible Alternative to Submersible Pumps
FreFlow pumps are self-priming centrifugal pumps suitable for handling contaminated and low-viscosity liquids. Its innovative design, eliminating the need for a non-return valve, results in less maintenance. The self-priming ability prevents the pump from running dry, and ensures smooth and easy operation.
Especially suitable for contaminated liquids, as well liquids containing air or gas, for sumps, gullies and many other applications where a suction lift is required.
- Excellent self-priming ability
- No non-return valve required in the inlet
- Single unbalanced/balanced seals to EN 12756 (DIN 24960)
- Mechanical seal with dry-running protection through oil bath quench
- Ideal for handling contaminated liquids
- Easy maintenance Back-Pull-Out principle
- Flanges 32 and 40 threaded connections
- Flange connection 50 and higher to ISO 7005 PN 16
- Flange connection to ISO 7005 PN 20 (ANSI B16.5 150 lbs) optional
- Greased for life roller bearings
- Magnetic drive optional
- Atex Certified
- CE Certified
| Casing | : Cast iron, Bronze, Stainless steel |
| Impeller | : Cast iron, Bronze, Stainless steel |
| Capacity | : Max. 350 m3/hr |
| Delivery head | : Max. 80 m |
| Liquid temp. | : Max. 95 °C |
| Pressure | : Max. 900 kPa (16 bar) |
| Speed | : Max. 3600 rpm |
| Self-priming | : Up to 7 m |
