Portable

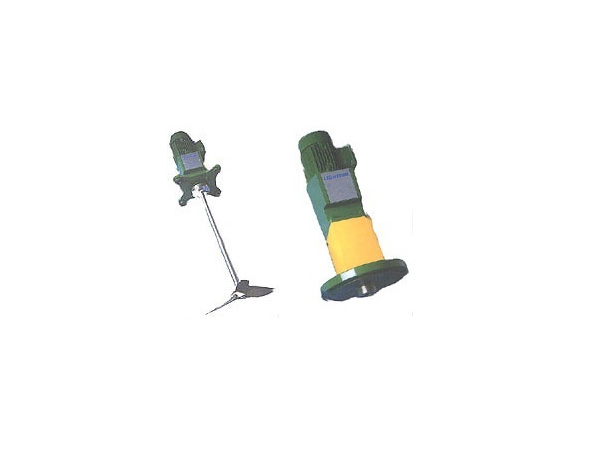

L Series Mixers
L Series Mixers for both open and closed tanks
LIGHTNIN L series mixers are ideally suited for a variety of applications from high flow to high shear and for batch or continuous processes, where the mounting provides:
- long shaft and installation stability.
- A size range from 0.25 to 4.0 kW
A Variety Of Models Are Available:
- LP open tank with clamp or cup plate mounting.
- LQ open tank, with plate mounting.
- LL closed tank with stuffing box seal.
- LS closed tank with stuffing box seal.
- LS closed tank with mechanical seal.
- LCS & LSS side entry versions.
L & H Series Features include:
- A metric frame motor, IP55 class F insulation, as standard or to your own specification.
- Modular design to give easy conversation from open tank to mechanical seal or stuffing box models. Not applicable for LP model.
- Maintenance seals provide protection against lubricant leakage.
- Vibration dampening. Flexible anti-vibration mounts protect the drive against high fluid forces,prolonging mixer life.
- Internal helical gears for long life , quiet and efficient operation.
- A rigid coupling to provide stability for long shaft. Not applicable for LP model.
- 1725RPM (60Hz) or 1450 RPM(50Hz) direct drive units are designed for small batch mixing plus high fluid shear applications. Not applicable for LP model.
- For LP model - A rugged aluminium clamp. Alternative mounting options are available to suit specific requirements. A unique positioning and indexing system, where by the optimum mixing position can be located and repeated.
- The exclusive A310 high efficiency impeller.
- LIGHTNIN's 100% performance guarantee.
