Novados Series

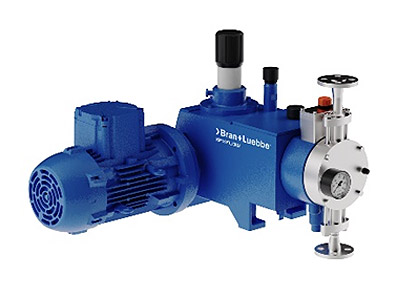

Novados Express Metering Pumps
Precision Engineered Pump
NOVADOS Express is the precision engineered metering pumps for outstanding quality with faster delivery and competitive pricing. Novados Express comprises leak-free diaphragm pumps as well as plunger pumps. Suitable for most liquid dosing applications, it can also handle consistencies ranging from pure liquids free from particles to slurries with a solids content of up to 5wt%.
Benefits
- Hermetically sealed pump design
- Optimal capacity adaptation to widely varying production processes
- Variable stroke length allows precise flow rate adjustment
Materials of construction of liquid-wetted parts:
- Housings of stainless steel 316 low carbon type
- Diaphragms of PTFE
- Plungers of stainless steel or ceramic
Pump gear design:
- Worm gear with different reduction ratios
- Splash lubrication
- Stroke length adjustment via eccentric (Z-shape) crankshaft
Flow rate control:
- Manual
Drive:
- Electric motor with fixed speed
| Flow rate | : 2 - 300 l/hr |
| Pressure | : Max 20 bar (290 psi) |
| Fluid temp. | : -10 to +93 °C |
| Operating conditions | : Safe area |
