Novados Series

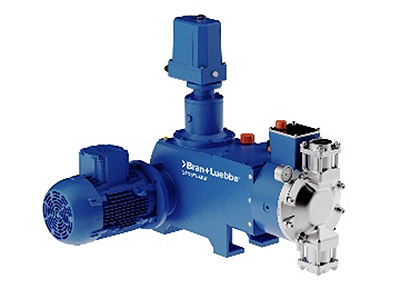

Novados Plunger & Diaphragm Metering Pumps
Metering pump with high-capacity adaptation
The NOVADOS Family comprises leak-free diaphragm pumps as well as plunger pumps. Nearly all gear sizes in the NOVADOS series can be combined to achieve the required flow rate and pressure parameters.
Benefits
- Hermetically sealed pump design
- Optimal capacity adaptation to widely varying production processes
- Variable stroke length for each pump allows independent flow rate adjustment of each pump component
- Variable speed drive allows flow rate variations while maintaining
- Automation allows higher production efficiency to be achieved
- Existing installations can be altered or expanded with extra pumps or automatic control
- Multiple pumps with up to 12 pump heads are available
Materials of construction of liquid-wetted parts:
- Housings of stainless steel 1.4571 or 1.4462, or plastic PVC or PP
- Diaphragms of PTFE or stainless steel 1.4310
- Plungers of stainless steel or ceramic
- Options: materials such as Super Duplex, Hastelloy, Titanium and other materials
Pump gear design:
- Worm gear with different reduction ratios
- Splash lubrication
- Stroke length adjustment via eccentric (Z-shape) crankshaft
Flow rate control:
- Manual, electric, pneumatic or speed variation
Drive:
- Electric motor with fixed or variable speed
- Other drives on request
| Operating conditions | : Hazardous area up to Zone 1 IIC T4 (Zone 22 upon request) |
| Fluid temp. | : -40 to +150 °C (special solutions upon request) |
